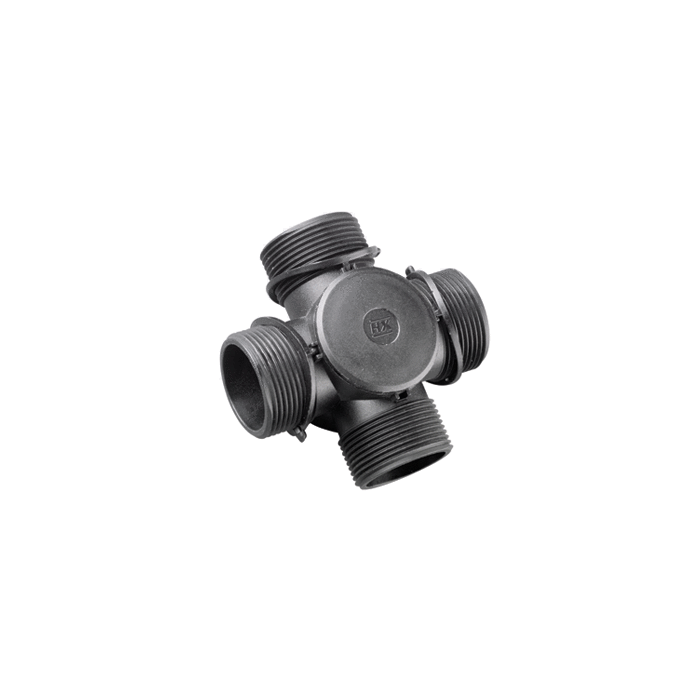

Symmetrical, 4 junction compression type fittings providing a variety of conduit size configurations.
These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.
IP67 - IP68 (2 bar for 30 minutes) - sealing bush protects against ingress of water and dust.
Cap-nut retention ring ensures integrity of assembly under extreme vibration
Smooth contoured internal form protects cables from damage during installation.
Integral mounting bracket - provides secure external fixing point.
Removable IP67 inspection lid
Polyamide (Nylon) 66
Temperature Range: -40ºC to +150ºC
Very high UV resistance
Self extinguishing, low smoke toxicity & halogen free
| Body SKU | A | B | C | D | E | F | G | H |
| XP20 | 17 | 17 | 17 | 17 | 80 | 80 | 35 | 20 |
Available in standard and reducing varieties.
Convert sealed outlets to unsealed freely rotating.
To suit our threaded fittings such as Type AB, suitable for mounting to knockouts.
Harnessflex Sealed bodies support a nominal conduit diameter via their default Cap nut and Seal pairing (the largest conduit size in the conduit diameters list).
Reducing cap nut and seals are also available, which support smaller conduit diameters than the nominal standard.
Swivel rings provide an option to convert the conduit fit from a sealed non-rotating connection, to a non-sealed freely rotating one. Swivel rings are available for the nominal conduit diameter of a sealed body, via a the standard cap nut (no reducing fittings).
High Quality face sealing washers in TPV Material and Lock Nuts made of Nylon to suit standard threaded sealed fittings.
TPV
Resistant to: Water, acids, ethanol, glycerol, methanol and propanol, hydraulic brake fluid and antifreeze.
Polyamide 12 Nylon
Resistant to all under bonnet oils, greases, fuels, cleaning fluids and synthetic fluids.
