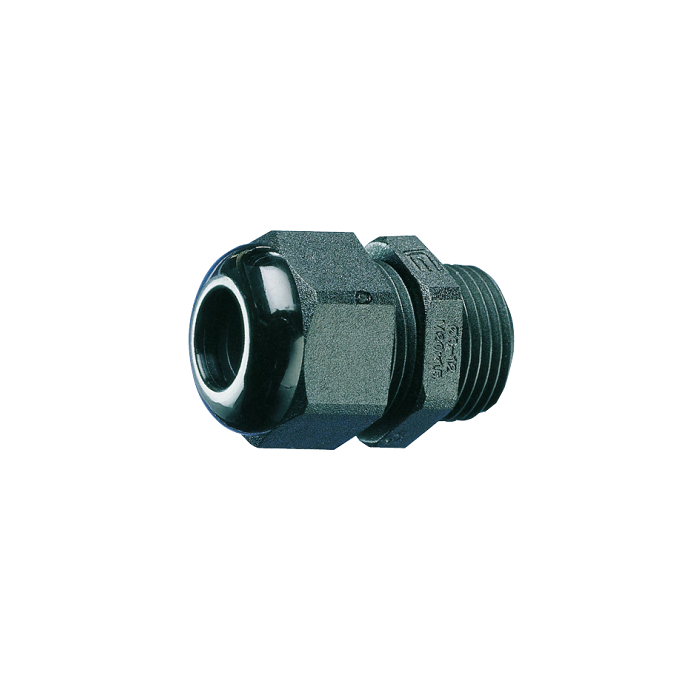

Type CGS: Cable Gland

As low as £0.96 £0.80

In stock

Only %1 left

SKU

CGS

Description

The ABB Harnessflex CGS Cable Gland is a high-quality cable entry solution designed to provide secure cable retention, effective strain relief and reliable environmental sealing for a wide range of electrical installations. Engineered for long-term performance, the CGS cable gland helps protect electrical cables as they enter enclosures, control panels and equipment, ensuring a professional and dependable installation.

Manufactured for demanding industrial and commercial environments, the CGS Cable Gland offers excellent mechanical strength and durability while helping to protect against the ingress of dust, moisture and other environmental contaminants. Its robust design ensures reliable cable support and long service life, making it suitable for both new installations and maintenance applications.

Applications

The CGS Cable Gland is widely used in industrial machinery, control panels, electrical enclosures, automation systems, commercial vehicles, rail applications and general electrical installations where cables require secure termination and environmental protection.

Suitable for use across a wide range of industrial cable management applications, the ABB Harnessflex CGS Cable Gland provides a dependable solution for maintaining cable integrity while delivering effective strain relief and reliable long-term performance.

About this product

Features

Straight compression type cable glands, incorporating fixed male threads
IP69 - IP68 (5 bar for 30 minutes)
Mechanical protection and a degree of ingress protection against dust
Polyamide (Nylon) 66 - UV & Heat resistant
Temperature Range: -40ºC to +120ºC
Very high UV resistance
Self extinguishing, low smoke toxicity & halogen free
Available in black only

Conformity

CE Mark to the low voltage directive
RoHS Compliant to 2011/65/EU
Conforms with end of life vehicle directive (ELV) EU200/53/EC

Dimensions

Body SKU	A	B	C	D	E	F
CGS-M16	M16 x 1.5mm	4-10	9	34.5	21	23.5
CGS-M20	M20 x 1.5mm	6-12	10	37	24	27
CGS-M25	M25 x 1.5mm	13-18	11	40	30	33
CGS-M32	M32 x 1.5mm	17-25	12	49	41	45.5
CGS-M40	M40 x 1.5mm	24-32	13	55	50	55.5
CGS-PG07	PG7	2-6.5	8	31.0	17	19.0
CGS-PG09	PG9	4-10	8	33.5	21	23.5
CGS-PG11	PG11	6-12	8	35.0	24	27.0
CGS-PG13	PG13.5	6-12	9	36.0	24	27.0
CGS-PG16	PG16	10-14	10	38.5	27	30.0
CGS-PG21	PG21	13-18	11	40.0	30	33.0
CGS-PG29	PG29	17-25	11	48.0	41	45.5

Sealed Fittings: Accessories

We offer supplementary accessories for our sealed fittings to modify conduit fit

Cap Nuts & Seals

Available in standard and reducing varieties.

Swivel Rings

Convert sealed outlets to unsealed freely rotating.

Washers & Lock nuts

To suit our threaded fittings such as Type AB, suitable for mounting to knockouts.

Cap Nuts and Seals

Harnessflex Sealed bodies support a nominal conduit diameter via their default Cap nut and Seal pairing (the largest conduit size in the conduit diameters list).
Reducing cap nut and seals are also available, which support smaller conduit diameters than the nominal standard.

Swivel Rings

Swivel rings provide an option to convert the conduit fit from a sealed non-rotating connection, to a non-sealed freely rotating one. Swivel rings are available for the nominal conduit diameter of a sealed body, via a the standard cap nut (no reducing fittings).

Replaces SRN seal to provide a rotating joint.
Swivel capability converts sealed fittings into freely rotating IP40 fittings for dynamic applications.
Split C ring design sits tightly into conduit corrugations.

Face Sealing Washers / Lock Nuts

High Quality face sealing washers in TPV Material and Lock Nuts made of Nylon to suit standard threaded sealed fittings.

TPV

Resistant to: Water, acids, ethanol, glycerol, methanol and propanol, hydraulic brake fluid and antifreeze.

Polyamide 12 Nylon

Resistant to all under bonnet oils, greases, fuels, cleaning fluids and synthetic fluids.
