Type TP: Sealed T-piece Fitting

£0.00 £0.00

In stock

SKU

TP-ADV

Qty

Overview

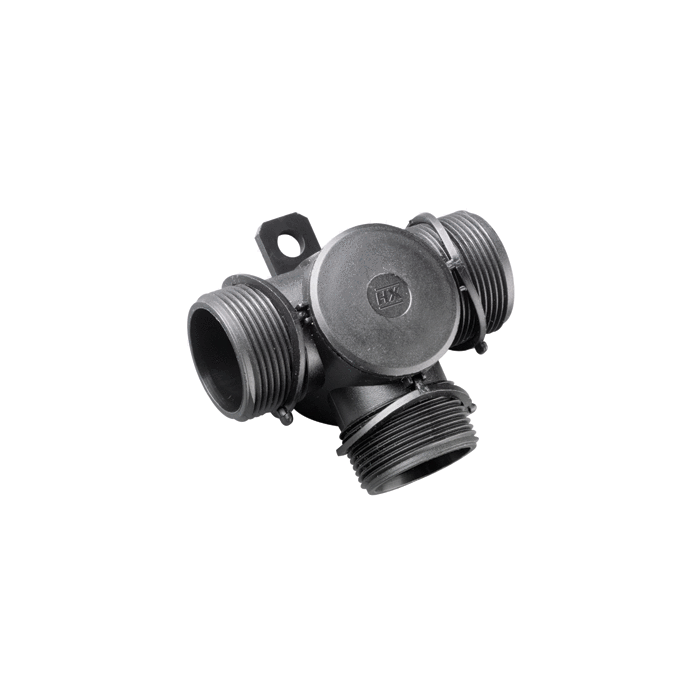

Symmetrical, 3 junction compression type fittings providing a variety of conduit size configurations.
These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

About this product

Features

IP67 - IP68 (2 bar for 30 minutes) - sealing bush protects against ingress of water and dust.
Cap-nut retention ring ensures integrity of assembly under extreme vibration
Smooth contoured internal form protects cables from damage during installation.
Integral mounting bracket - provides secure external fixing point.
Removable IP67 inspection lid
Polyamide (Nylon) 66
Temperature Range: -40ºC to +150ºC
Very high UV resistance
Self extinguishing, low smoke toxicity & halogen free

Conformity

ADR approved (NC conduits ONLY)
CE Mark to the low voltage directive
RoHS Compliant to 2011/65/EU
Conforms with end of life vehicle directive (ELV) EU200/53/EC

Dimensions

Body SKU (with bracket)	Body SKU (without bracket)	A	B	C	D	E	F	G	H
	TP12	8.5	8.5	8.5	68	50	39	27	17
	TP12	10	10	10	68	50	39	27	17
	TP16	13	13	13	69	51	38	31	17
TPB20	TP20	17	17	17	80	58	43	35	20
TPB28	TP28	22	22	22	95	71	52	43	21
TPB28	TP28	23	23	23	95	71	52	43	21
TPB32		29	29	29	109	84	61	51	27

Sealed Fittings: Accessories

We offer supplementary accessories for our sealed fittings to modify conduit fit

Cap Nuts & Seals

Available in standard and reducing varieties.

Swivel Rings

Convert sealed outlets to unsealed freely rotating.

Washers & Lock nuts

To suit our threaded fittings such as Type AB, suitable for mounting to knockouts.

Cap Nuts and Seals

Harnessflex Sealed bodies support a nominal conduit diameter via their default Cap nut and Seal pairing (the largest conduit size in the conduit diameters list).
Reducing cap nut and seals are also available, which support smaller conduit diameters than the nominal standard.

Swivel Rings

Swivel rings provide an option to convert the conduit fit from a sealed non-rotating connection, to a non-sealed freely rotating one. Swivel rings are available for the nominal conduit diameter of a sealed body, via a the standard cap nut (no reducing fittings).

Replaces SRN seal to provide a rotating joint.
Swivel capability converts sealed fittings into freely rotating IP40 fittings for dynamic applications.
Split C ring design sits tightly into conduit corrugations.

Face Sealing Washers / Lock Nuts

High Quality face sealing washers in TPV Material and Lock Nuts made of Nylon to suit standard threaded sealed fittings.

TPV

Resistant to: Water, acids, ethanol, glycerol, methanol and propanol, hydraulic brake fluid and antifreeze.

Polyamide 12 Nylon

Resistant to all under bonnet oils, greases, fuels, cleaning fluids and synthetic fluids.
