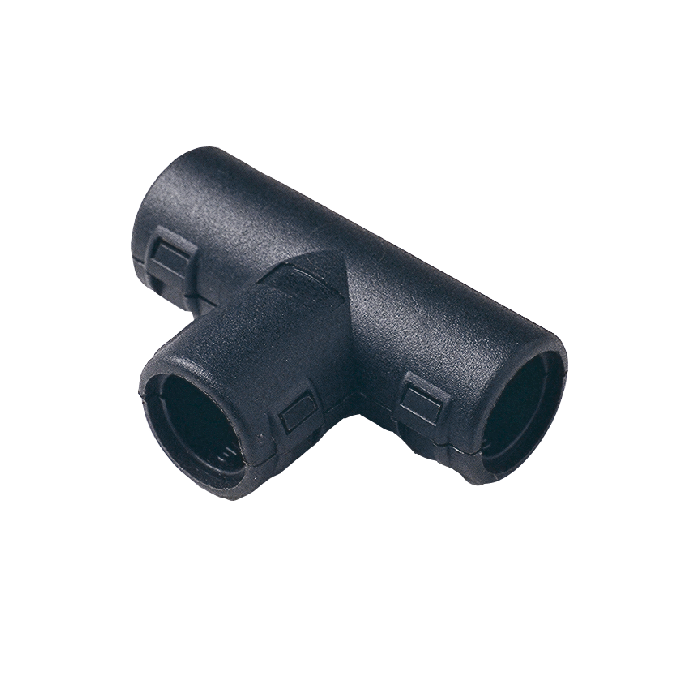

Type TPS: Hinged T-piece

£0.00
In stock
SKU
TPS-ADV
Add to Wish List Add to Compare

Overview

One-piece symmetrical 3 junction fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore.

About this product

Features

  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength - conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels - each junction indicates nominal conduit size to aid installation
  • Integral retaining clips - retains conduit in position during assembly
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to +120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free

Conformity

  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC

Dimensions

Body SKU A (NC) B (NC) C (NC) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm)
TPS060606* 6 6 6 45.2 31.1 17 10 10 10
TPS080808 8 8 8 45.2 31.1 17 10 10 10
TPS081208 8 12 8 45.2 31.1 17 10 10 10
TPS081612 8 16 12 45.2 31.1 17 10 10 10
TPS100808 10 8 8 45.2 31.1 17 10 10 10
TPS100810 10 8 10 45.2 31.1 17 10 10 10
TPS101010 10 10 10 45.2 31.1 17 10 10 10
TPS101012 10 10 12 45.2 31.1 17 10 10 10
TPS120808 12 8 8 45.2 31.1 17 10 10 10
TPS120812 12 8 12 45.2 31.1 17 10 10 10
TPS121010 12 10 10 45.2 31.1 17 10 10 10
TPS121012 12 10 12 45.2 31.1 17 10 10 10
TPS121208 12 12 8 45.2 31.1 17 10 10 10
TPS121210 12 12 10 45.2 31.1 17 10 10 10
TPS121212 12 12 12 45.2 31.1 17 10 10 10
TPS121612 12 16 12 45.2 31.1 21 10 10 10
TPS160808 16 8 8 49.1 34.8 21 10 10 10
TPS160812 16 8 12 49.1 34.8 21 10 10 10
TPS160816 16 8 16 49.1 34.8 21 10 10 10
TPS161012 16 10 12 49.1 34.8 21 10 10 10
TPS161016 16 10 16 49.1 34.8 21 10 10 10
TPS161212 16 12 12 49.1 34.8 21 10 10 10
TPS161216 16 12 16 49.1 34.8 21 10 10 10
TPS161608 16 16 8 49.1 34.8 21 10 10 10
TPS161612 16 16 12 49.1 34.8 21 10 10 10
TPS161616 16 16 16 49.1 34.8 21 10 10 10
TPS162012 16 20 12 49.1 34.8 21 10 10 10
TPS162016 16 20 16 49.1 34.8 21 10 10 10
TPS200816 20 8 16 56.5 41 26 12 10 10
TPS200820 20 8 20 56.5 41 26 12 10 12
TPS201016 20 10 16 56.5 41 26 12 10 10
TPS201020 20 10 20 56.5 41 26 12 10 12
TPS201216 20 12 16 56.5 41 26 12 10 10
TPS201220 20 12 20 56.5 41 26 12 10 12
TPS201612 20 16 12 56.5 41 26 12 10 10
TPS201616 20 16 16 56.5 41 26 12 10 10
TPS201620 20 16 20 56.5 41 26 12 10 12
TPS202012 20 20 12 56.5 41 26 12 12 10
TPS202016 20 20 16 56.5 41 26 12 12 10
TPS202020 20 20 20 56.5 41 26 12 12 12
TPS202516 20 25 16 64.5 48.5 33 12 13 10
TPS250820 25 8 20 64.5 48.5 33 13 10 12
TPS250825 25 8 25 64.5 48.5 33 13 10 13
TPS251025 25 10 25 64.5 48.5 33 13 10 13
TPS251220 25 12 20 64.5 48.5 33 13 10 12
TPS251225 25 12 25 64.5 48.5 33 13 10 13
TPS251620 25 16 20 64.5 48.5 33 13 12 12
TPS251625 25 16 25 64.5 48.5 33 13 12 13
TPS252020 25 20 20 64.5 48.5 33 13 13 12
TPS252025 25 20 25 64.5 48.5 33 13 13 13
TPS252520 25 25 20 64.5 48.5 33 13 10 12
TPS252525 25 25 25 64.5 48.5 33 13 10 13
TPS280820 28 8 20 64.5 48.5 33 13 10 12
TPS280828 28 8 28 64.5 48.5 33 13 10 13
TPS281020 28 10 20 64.5 48.5 33 13 10 12
TPS281028 28 10 28 64.5 48.5 33 13 10 13
TPS281220 28 12 20 64.5 48.5 33 13 10 13
TPS281225 28 12 25 64.5 48.5 33 13 10 12
TPS281228 28 12 28 64.5 48.5 33 13 10 13
TPS281620 28 16 20 64.5 48.5 33 13 10 12
TPS281625 28 16 25 64.5 48.5 33 13 10 13
TPS281628 28 16 28 64.5 48.5 33 13 10 13
TPS282020 28 20 20 64.5 48.5 33 13 12 12
TPS282025 28 20 25 64.5 48.5 33 13 12 13
TPS282028 28 20 28 64.5 48.5 33 13 12 13
TPS282525 28 25 25 64.5 48.5 33 13 13 13
TPS282528 28 25 28 64.5 48.5 33 13 13 13

Hinged Fittings: Accessories

We offer a wide range of accessories for our hinged fittings to suit various scenarios

CCSB

Multi-function Conduit Clip

MSA/R

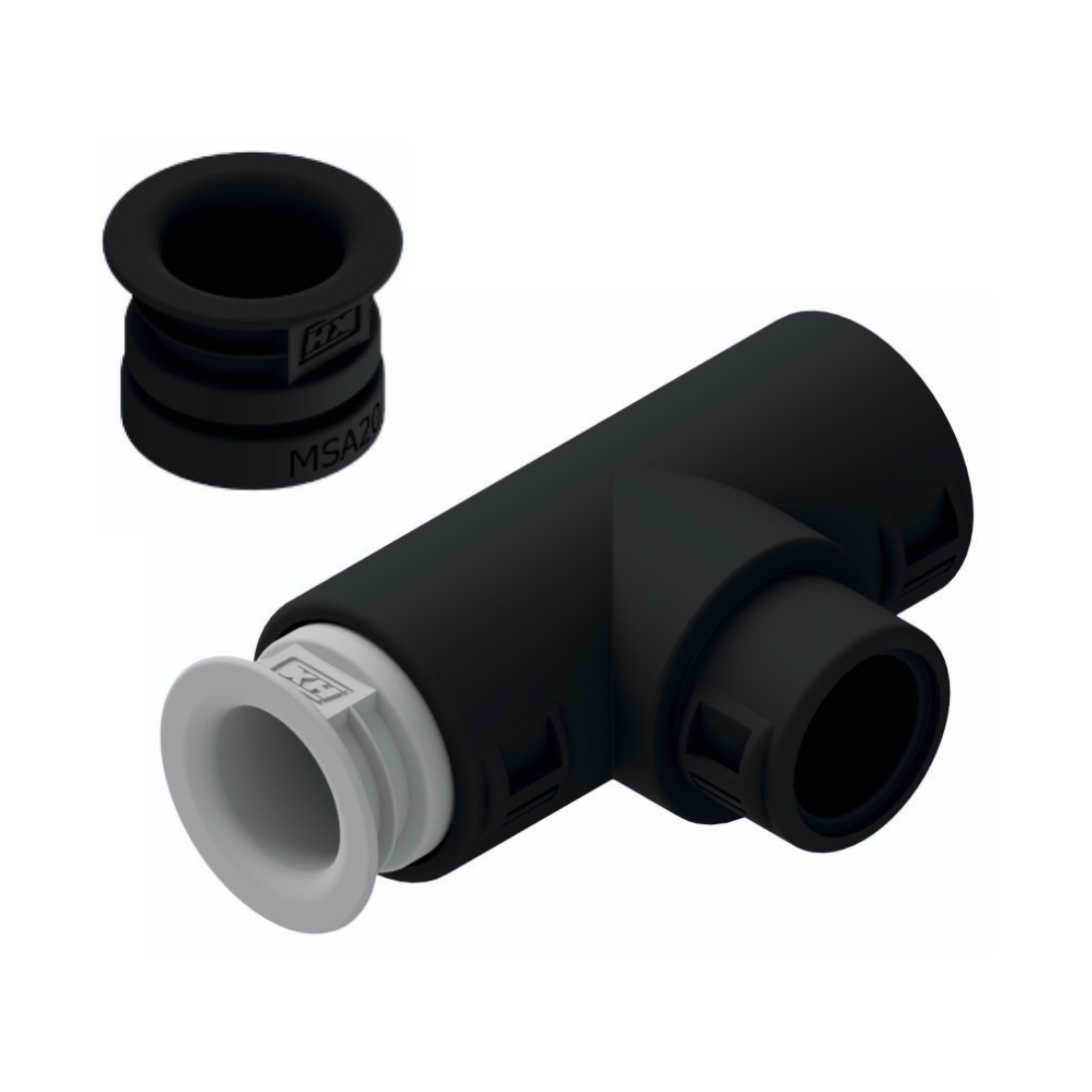

Multi-sleeve Adaptors

SEG/GROM

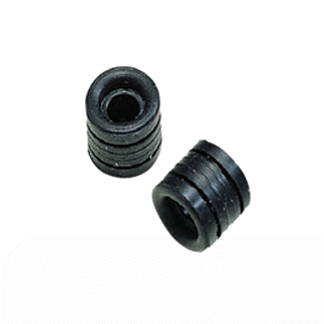

Smooth Entry Grommets

ST-XX

Multi-way Reducers

Accessory Purposes/Benefits

See tabs for more details

Connection size adjustment: Multifunction Conduit Clips

Adaption to sleeving: Multisleeve Adaptors

Connection reinforcement: Multifunction Conduit Clips, Mult-sleeve adaptors

Slit Conduit closure: Multifunction Conduit Clips

Smooth exits without conduit: Grommets

Splitting to multiple conduits: Multiway Reducers

Eliminating undesired outlets: Blanking Plates

Multi-function Conduit Clips

Outlet Reduction

  • Acts as an insert in hinged fitting outlets, shrinking the suitable conduit diameter.
  • Can be easily stacked to enable further reduction in conduit size
  • Can be used in combination with outher hinged accessories to adapt outlets to suit accessories not available in their original body diameter.

Outlet Reinforcement

  • Acts as an additonal reinforcement to conduit immediately after a hinged fitting
  • Increases snap out performance of all backshell and hinged fittings
  • Average strain relief increased by 22%
  • Average tensile strength increased by 21%

Conduit Reinforcement

  • up to 50% greater resistance to compression
  • Securely closes slit conduit to prevent cable exposure
  • External grooves to allow attachment of single piece fixing clips for ease of installation

CCSB's: An Overview

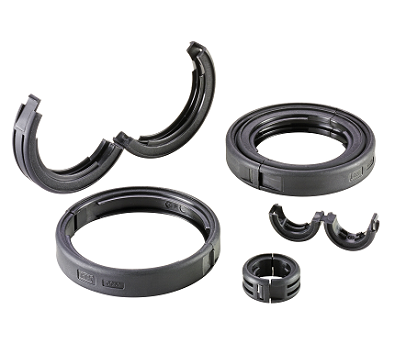

3-in-1 circular clips for slit conduit that offer up to 50% greater resistance to compression and mechanical strain

Harnessflex multi-function conduit clips are designed to securely close slit conduit, preventing cable exposure. This reduces the risk of cable damage, improves crush strength of slit conduits and offers greater strain relief on all Harnessflex hinged fitting and conduit systems.

Harnessflex multi-function conduit clips are made from resilient PA66 material and provide additional compression strength to slit conduits. When applied, these conduit clips also help to maintain conduit integrity when strained, greatly reducing associated risks of gapping and severe damage to cables.

These conduit clips also provide a reducing function for hinged fittings, allowing smaller conduits to be installed securely into larger conduit outlets. Some clips can be clipped together to offer further reducing options, allowing inventory to be maximised and providing greater product installation flexibility for global harness-makers.

Harnessflex Interconnect system

Interface with Sleeving

  • Acts as an insert in hinged fitting outlets, offering a means to attach sleeving or heatshrink.
  • Allows free rotation of braid/sleeving to reduce strain.
  • Can be easily secured with either Ty-Fast® cable ties or Harnessflex Multi-Function clips (CCSB's)

Slit Conduit Reinforcement

  • Acts as an insert inside slit conduit ends to improve tensile strength when connecting to hinged fittings / connector interfaces
  • Pairs well with CCSB's outlet reinforcement capabilities to further improve strength of connection.

Multisleeve adaptors: An Overview

Compatible with Harnessflex Multi-Function Clips or Ty-Rap® cable ties, the Harnessflex Interconnect System is available for all conduit outlet sizes NC08 to NC40 (excluding NC10). Without the right cable protection system in place, electric vehicles may become prone to critical electrical failure which will cause them to breakdown, resulting in timetable disruptions and repair costs. One of the key areas at risk is the vital link between cable and connector. Without robust backshell protection, cables running into connectors are often left exposed, leaving them open to intrusion, excessive strain and impact damage - all of which can lead to electrical faults and vehicle failure.

Smooth Entry Grommets

Direct Cable Insertion

  • One piece slit insert providing abrasion protection for cables passing through a hinged junction where conduit is not used.
  • Smoothbore outlet

TPV Material

  • A polypropylene based elastomer designed primarily for demanding automotive applications. This material exhibits excellent compression set, flex fatigue and high and low temperature performance.
  • TPV fittings are resistant to: Water, acids, ethanol, glycerol, methanol and propanol, hydraulic brake fluid and antifreeze.

Multiway reducers & Blanking Caps

Multiway Reducers

  • One-piece, multi-way breakout inserts providing reducing options to a variety of conduit sizes
    from a single fitting junction.
  • Can accommodate all types of Harnessflex slit and unslit conduit and may be used with all
    Hinged Harnessflex fittings.
  • In-line circular fittings are designed to use these reducers as a depenancy, requiring one for use.

Blanking Caps

  • One-piece inserts to blank a hinged conduit outlet, maintaining its original IP rating.
