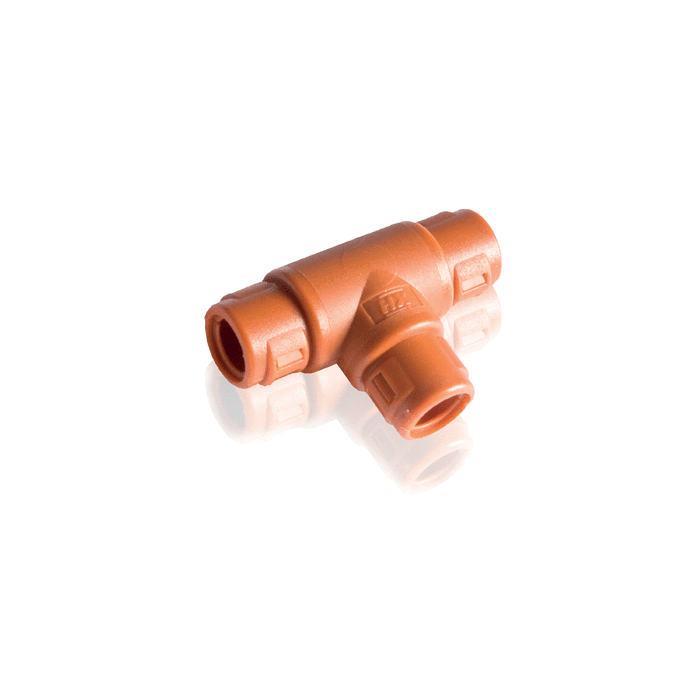

Type TPH: High Temperature Hinged T-piece

£0.00
In stock
SKU
TPH-ADV
Add to Wish List Add to Compare

Overview

One-piece symmetrical 3 junction fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. Full TempGuard system protection is achieved using these fittings with HTC conduit.

About this product

Features

  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength - conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels - each junction indicates nominal conduit size to aid installation
  • High Temperature Polyamide (Nylon) - Low Smoke & Halogen Free
  • IP40 rated
  • High UV resistance

Conformity

  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
  • UL94 V2 / UL94 RTI 150 (Elec)

Temperature Range

Minimum -40ºC
Permanent Max +160ºC
Long term max (30,000 hrs) +185ºC
Short term max (3,000 hrs) +200ºC

Dimensions

Body SKU A (NC) B (NC) C (NC) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm)
TPH080808 8 8 8 45.2 31.1 17 10 10 10
TPH081208 8 12 8 45.2 31.1 17 10 10 10
TPH081612 8 16 12 45.2 31.1 17 10 10 10
TPH100808 10 8 8 45.2 31.1 17 10 10 10
TPH100810 10 8 10 45.2 31.1 17 10 10 10
TPH101010 10 10 10 45.2 31.1 17 10 10 10
TPH101012 10 10 12 45.2 31.1 17 10 10 10
TPH120808 12 8 8 45.2 31.1 17 10 10 10
TPH120812 12 8 12 45.2 31.1 17 10 10 10
TPH121210 12 10 10 45.2 31.1 17 10 10 10
TPH121012 12 10 12 45.2 31.1 17 10 10 10
TPH121208 12 12 8 45.2 31.1 17 10 10 10
TPH121210 12 12 10 45.2 31.1 17 10 10 10
TPH121212 12 12 12 45.2 31.1 17 10 10 10
TPH121612 12 16 12 45.2 31.1 21 10 10 10
TPH160808 16 8 8 49.1 34.8 21 10 10 10
TPH160812 16 8 12 49.1 34.8 21 10 10 10
TPH160816 16 8 16 49.1 34.8 21 10 10 10
TPH161012 16 10 12 49.1 34.8 21 10 10 10
TPH161016 16 10 16 49.1 34.8 21 10 10 10
TPH161212 16 12 12 49.1 34.8 21 10 10 10
TPH161216 16 12 16 49.1 34.8 21 10 10 10
TPH161608 16 16 8 49.1 34.8 21 10 10 10
TPH161612 16 16 12 49.1 34.8 21 10 10 10
TPH161616 16 16 16 49.1 34.8 21 10 10 10
TPH162012 16 20 12 49.1 34.8 21 10 10 10
TPH162016 16 20 16 49.1 34.8 21 10 10 10
TPH200816 20 8 16 56.5 41 26 12 10 10
TPH200820 20 8 20 56.5 41 26 12 10 12
TPH201016 20 10 16 56.5 41 26 12 10 10
TPH201020 20 10 20 56.5 41 26 12 10 12
TPH201216 20 12 16 56.5 41 26 12 10 10
TPH201220 20 12 20 56.5 41 26 12 10 12
TPH201612 20 16 12 56.5 41 26 12 10 10
TPH201616 20 16 16 56.5 41 26 12 10 10
TPH201620 20 16 20 56.5 41 26 12 10 12
TPH202012 20 20 12 56.5 41 26 12 12 10
TPH202016 20 20 16 56.5 41 26 12 12 10
TPH202020 20 20 20 56.5 41 26 12 12 12
TPH202516 20 25 16 64.5 48.5 33 12 13 10

Hinged Fittings: Accessories

We offer a wide range of accessories for our hinged fittings to suit various scenarios

CCSB

Multi-function Conduit Clip

MSA/R

Multi-sleeve Adaptors

SEG/GROM

Smooth Entry Grommets

ST-XX

Multi-way Reducers

Accessory Purposes/Benefits

See tabs for more details

Connection size adjustment: Multifunction Conduit Clips

Adaption to sleeving: Multisleeve Adaptors

Connection reinforcement: Multifunction Conduit Clips, Mult-sleeve adaptors

Slit Conduit closure: Multifunction Conduit Clips

Smooth exits without conduit: Grommets

Splitting to multiple conduits: Multiway Reducers

Eliminating undesired outlets: Blanking Plates

Multi-function Conduit Clips

Outlet Reduction

  • Acts as an insert in hinged fitting outlets, shrinking the suitable conduit diameter.
  • Can be easily stacked to enable further reduction in conduit size
  • Can be used in combination with outher hinged accessories to adapt outlets to suit accessories not available in their original body diameter.

Outlet Reinforcement

  • Acts as an additonal reinforcement to conduit immediately after a hinged fitting
  • Increases snap out performance of all backshell and hinged fittings
  • Average strain relief increased by 22%
  • Average tensile strength increased by 21%

Conduit Reinforcement

  • up to 50% greater resistance to compression
  • Securely closes slit conduit to prevent cable exposure
  • External grooves to allow attachment of single piece fixing clips for ease of installation

CCSB's: An Overview

3-in-1 circular clips for slit conduit that offer up to 50% greater resistance to compression and mechanical strain

Harnessflex multi-function conduit clips are designed to securely close slit conduit, preventing cable exposure. This reduces the risk of cable damage, improves crush strength of slit conduits and offers greater strain relief on all Harnessflex hinged fitting and conduit systems.

Harnessflex multi-function conduit clips are made from resilient PA66 material and provide additional compression strength to slit conduits. When applied, these conduit clips also help to maintain conduit integrity when strained, greatly reducing associated risks of gapping and severe damage to cables.

These conduit clips also provide a reducing function for hinged fittings, allowing smaller conduits to be installed securely into larger conduit outlets. Some clips can be clipped together to offer further reducing options, allowing inventory to be maximised and providing greater product installation flexibility for global harness-makers.

Harnessflex Interconnect system

Interface with Sleeving

  • Acts as an insert in hinged fitting outlets, offering a means to attach sleeving or heatshrink.
  • Allows free rotation of braid/sleeving to reduce strain.
  • Can be easily secured with either Ty-Fast® cable ties or Harnessflex Multi-Function clips (CCSB's)

Slit Conduit Reinforcement

  • Acts as an insert inside slit conduit ends to improve tensile strength when connecting to hinged fittings / connector interfaces
  • Pairs well with CCSB's outlet reinforcement capabilities to further improve strength of connection.

Multisleeve adaptors: An Overview

Compatible with Harnessflex Multi-Function Clips or Ty-Rap® cable ties, the Harnessflex Interconnect System is available for all conduit outlet sizes NC08 to NC40 (excluding NC10). Without the right cable protection system in place, electric vehicles may become prone to critical electrical failure which will cause them to breakdown, resulting in timetable disruptions and repair costs. One of the key areas at risk is the vital link between cable and connector. Without robust backshell protection, cables running into connectors are often left exposed, leaving them open to intrusion, excessive strain and impact damage - all of which can lead to electrical faults and vehicle failure.

Smooth Entry Grommets

Direct Cable Insertion

  • One piece slit insert providing abrasion protection for cables passing through a hinged junction where conduit is not used.
  • Smoothbore outlet

TPV Material

  • A polypropylene based elastomer designed primarily for demanding automotive applications. This material exhibits excellent compression set, flex fatigue and high and low temperature performance.
  • TPV fittings are resistant to: Water, acids, ethanol, glycerol, methanol and propanol, hydraulic brake fluid and antifreeze.

Multiway reducers & Blanking Caps

Multiway Reducers

  • One-piece, multi-way breakout inserts providing reducing options to a variety of conduit sizes
    from a single fitting junction.
  • Can accommodate all types of Harnessflex slit and unslit conduit and may be used with all
    Hinged Harnessflex fittings.
  • In-line circular fittings are designed to use these reducers as a depenancy, requiring one for use.

Blanking Caps

  • One-piece inserts to blank a hinged conduit outlet, maintaining its original IP rating.
