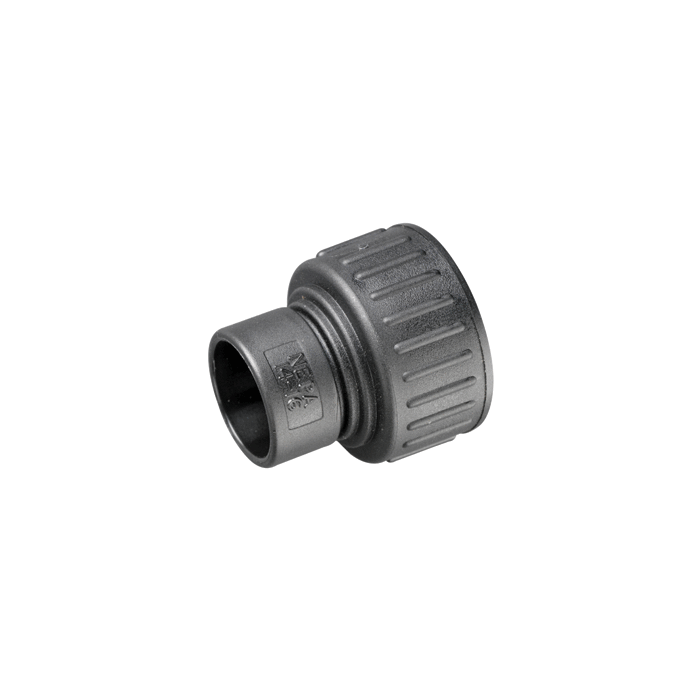

Type NEPA: Hinged UNEF Adaptor
Overview
Interface provides connection between electrical circular connectors and hinged conduit system. Due to the innovative design, the interface can freely rotate without any harness movement.
About this product Features
One-piece external design for unrestricted bore and quick assembly with no tools.
High pull-off strength - conduit corrugations sit tightly into joiner junctions.
Conduit size labels - each junction indicates nominal conduit size to aid installation
Polyamide (Nylon) 66
IP40 rated
Temperature Range: -40ºC to +120ºC
Very high UV resistance
Self extinguishing, low smoke toxicity & halogen free
Conformity
CE Mark to the low voltage directive
RoHS Compliant to 2011/65/EU
Conforms with end of life vehicle directive (ELV) EU200/53/EC
Dimensions
Body SKU Shell Size Conduit Size (NC) Thread Size
NEPA14-16
14mm
16
13/16’’-20 UNEF
NEPA16-20
16mm
20
15/16’’-20 UNEF
NEPA24-28
24mm
28
17/16” -18 UNEF
CI20-CCU100
18/16mm
20
1’’-20 UNEF
CI20-CCU119
18/16mm
20
13/16’’-18 UNEF
CI28-CCU138
24mm
28
13/8’’-18 UNEF
