Type MPS: Two-piece 5 way fitting

£0.00
In stock
SKU
MPS-ADV
Add to Wish List Add to Compare

Overview

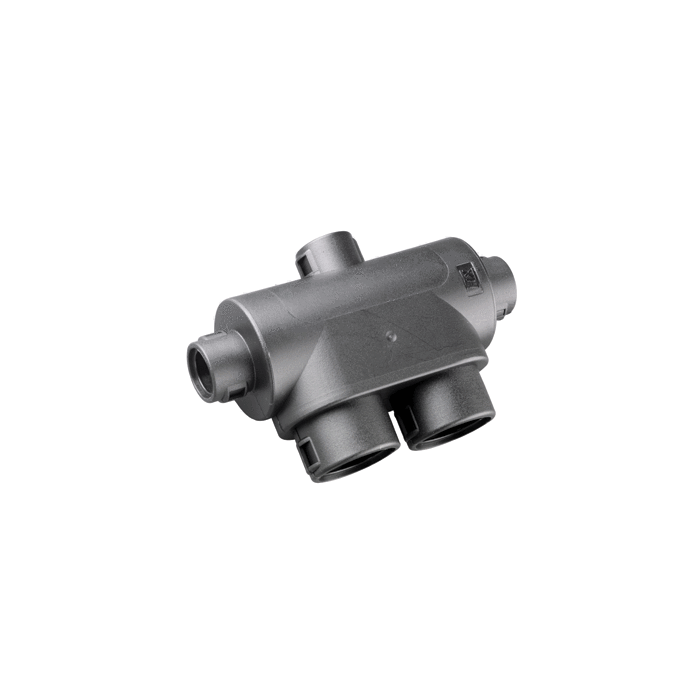

Two identical half shells snap together to give a 5 Way conduit fitting. Designed to fit all Harnessflex conduit. Additional configurations possible (dependent on volume).

About this product

Features

  • High pull-off strength - Conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels - Each junction indicates nominal conduit size to aid installation
  • Multi outlet options - Connect multiple pieces of conduit to one fitting.
  • Certain outlets can be blanked using BPST08, BCH12 & BCH20
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to +120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free

Conformity

  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC

Dimensions

Body SKU A (NC) B (NC) C (NC) D (NC) E (NC) F (mm) G (mm) H (mm) I (mm) J (mm) K (mm) L (mm) M (mm)
MPS121212-2020 12 12 12 20 20 10 7 10 10 10 59 92 32
MPS122812-2020 12 28 12 20 20 10 12 10 10 10 67 92 32
MPS201220-2020 20 12 20 20 20 12 7 12 10 10 59 92 32
MPS202820-2020 20 28 20 20 20 12 12 12 10 10 67 92 32
MPS251225-2020 25 12 25 20 20 11 7 11 10 10 59 92 32
MPS252825-2020 25 28 25 20 20 11 12 11 10 10 67 92 32
