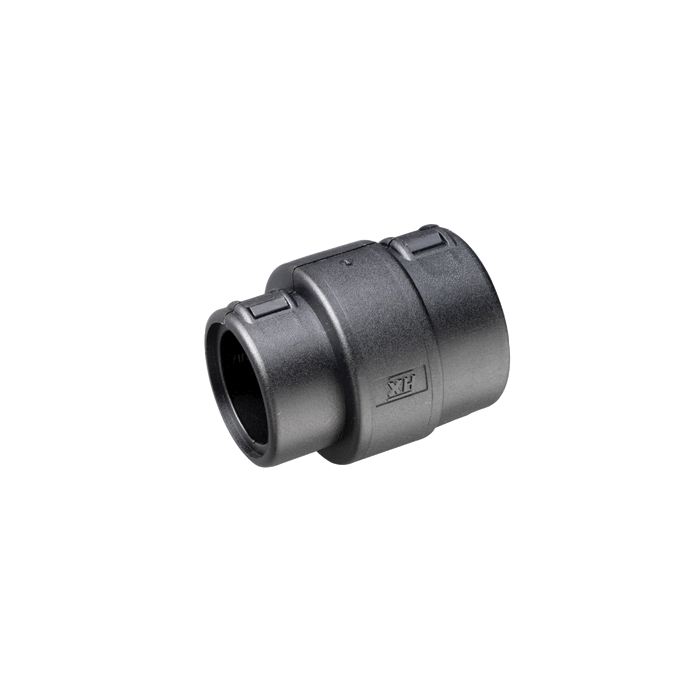

One-piece joiner and elbow hinged fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore. Can be used as an in-line reducer as well as an enlarger.
| Body SKU | A (NC) | B (NC) | C (mm) | D (mm) | E (mm) | F (mm) |
| JPS1208 | 12 | 8 | 38 | 16 | 10 | 10 |
| JPS1212 | 12 | 12 | 36 | 16 | 10 | 10 |
| JPS1612 | 16 | 12 | 36 | 21 | 10 | 10 |
| JPS1616 | 16 | 16 | 36 | 21 | 10 | 10 |
| JPS2008 | 20 | 8 | 38 | 26 | 12 | 10 |
| JPS2012 | 20 | 12 | 38 | 26 | 12 | 10 |
| JPS2016 | 20 | 16 | 38 | 26 | 12 | 10 |
| JPS2020 | 20 | 20 | 38 | 26 | 12 | 12 |
| JPS2520 | 25 | 20 | 39 | 33 | 12 | 12 |
| JPS2525 | 25 | 25 | 39 | 33 | 13 | 13 |
| JPS2820 | 28 | 20 | 39 | 33 | 13 | 13 |
| JPS2825 | 28 | 25 | 39 | 33 | 13 | 13 |
| JPS2828 | 28 | 28 | 39 | 33 | 13 | 13 |
Multi-function Conduit Clip
Multi-sleeve Adaptors
Smooth Entry Grommets
Multi-way Reducers
See tabs for more details
Connection size adjustment: Multifunction Conduit Clips
Adaption to sleeving: Multisleeve Adaptors
Connection reinforcement: Multifunction Conduit Clips, Mult-sleeve adaptors
Slit Conduit closure: Multifunction Conduit Clips
Smooth exits without conduit: Grommets
Splitting to multiple conduits: Multiway Reducers
Eliminating undesired outlets: Blanking Plates
3-in-1 circular clips for slit conduit that offer up to 50% greater resistance to compression and mechanical strain
Harnessflex multi-function conduit clips are designed to securely close slit conduit, preventing cable exposure. This reduces the risk of cable damage, improves crush strength of slit conduits and offers greater strain relief on all Harnessflex hinged fitting and conduit systems.
Harnessflex multi-function conduit clips are made from resilient PA66 material and provide additional compression strength to slit conduits. When applied, these conduit clips also help to maintain conduit integrity when strained, greatly reducing associated risks of gapping and severe damage to cables.
These conduit clips also provide a reducing function for hinged fittings, allowing smaller conduits to be installed securely into larger conduit outlets. Some clips can be clipped together to offer further reducing options, allowing inventory to be maximised and providing greater product installation flexibility for global harness-makers.
Compatible with Harnessflex Multi-Function Clips or Ty-Rap® cable ties, the Harnessflex Interconnect System is available for all conduit outlet sizes NC08 to NC40 (excluding NC10). Without the right cable protection system in place, electric vehicles may become prone to critical electrical failure which will cause them to breakdown, resulting in timetable disruptions and repair costs. One of the key areas at risk is the vital link between cable and connector. Without robust backshell protection, cables running into connectors are often left exposed, leaving them open to intrusion, excessive strain and impact damage - all of which can lead to electrical faults and vehicle failure.
