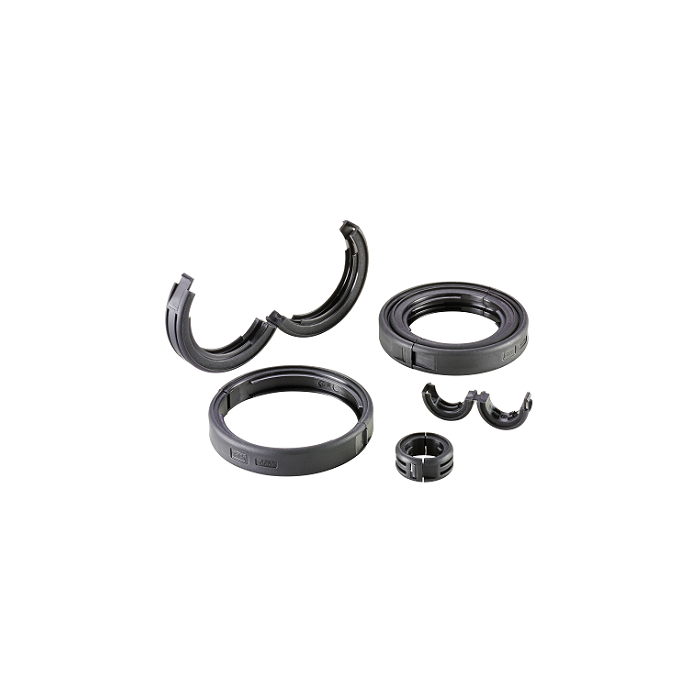

The ABB Harnessflex CCSB Multi-Function Conduit Clip is a versatile cable management accessory designed to provide secure conduit retention while offering additional installation flexibility within ABB Harnessflex cable protection systems. As well as functioning as a robust conduit clip, the CCSB can also be used as a reducing adaptor, allowing installers to create conduit size combinations that would not otherwise be possible using standard fittings alone.
Manufactured for demanding industrial, automotive and rail applications, the CCSB Multi-Function Conduit Clip offers excellent mechanical strength, long-term durability and reliable resistance to vibration. Its innovative multi-purpose design helps reduce installation complexity, minimise the number of components required and provides greater flexibility when designing or modifying conduit systems.
Applications
The CCSB Multi-Function Conduit Clip is widely used in industrial machinery, automation systems, commercial vehicles, rail applications, control panels and general electrical installations where flexible conduit requires secure support or non-standard conduit size transitions.
Compatible with ABB Harnessflex conduit systems, the CCSB Multi-Function Conduit Clip provides an efficient cable management solution by combining conduit support with reducing adaptor functionality. For example, when used with a YPS201616 Y-Piece, a CCSB16 enables a 16-16-16 conduit configuration that cannot be achieved using the standard fitting alone, providing installers with greater design flexibility while maintaining reliable cable protection.
Multi-function Conduit Clips
Outlet Reduction
Acts as an insert in hinged fitting outlets, shrinking the suitable conduit diameter.
Can be easily stacked to enable further reduction in conduit size
Can be used in combination with outher hinged accessories to adapt outlets to suit accessories not available in their original body diameter.
Outlet Reinforcement
Acts as an additonal reinforcement to conduit immediately after a hinged fitting
Increases snap out performance of all backshell and hinged fittings
Average strain relief increased by 22%
Average tensile strength increased by 21%
Conduit Reinforcement
up to 50% greater resistance to compression
Securely closes slit conduit to prevent cable exposure
External grooves to allow attachment of single piece fixing clips for ease of installation
CCSB's: An Overview
3-in-1 circular clips for slit conduit that offer up to 50% greater resistance to compression and mechanical strain
Harnessflex multi-function conduit clips are designed to securely close slit conduit, preventing cable exposure. This reduces the risk of cable damage, improves crush strength of slit conduits and offers greater strain relief on all Harnessflex hinged fitting and conduit systems.
Harnessflex multi-function conduit clips are made from resilient PA66 material and provide additional compression strength to slit conduits. When applied, these conduit clips also help to maintain conduit integrity when strained, greatly reducing associated risks of gapping and severe damage to cables.
These conduit clips also provide a reducing function for hinged fittings, allowing smaller conduits to be installed securely into larger conduit outlets. Some clips can be clipped together to offer further reducing options, allowing inventory to be maximised and providing greater product installation flexibility for global harness-makers.
