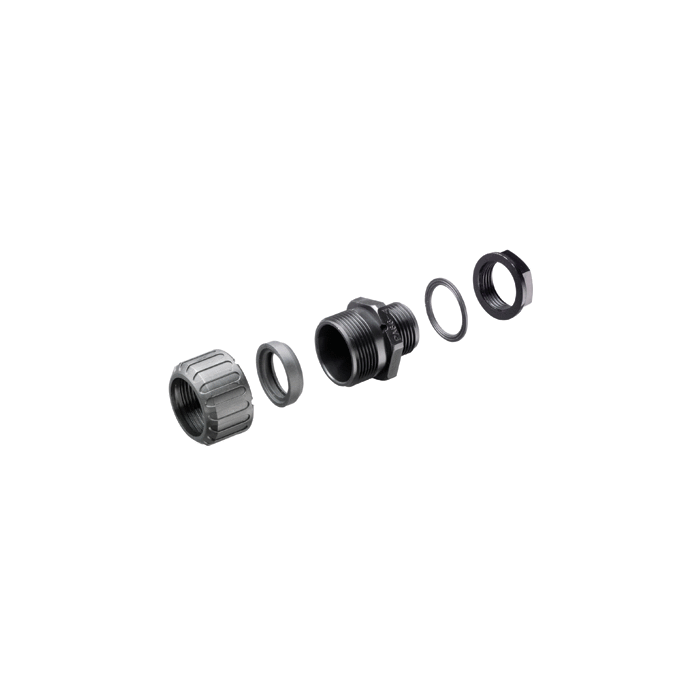

Type AB: Sealed Straight Fitting

£0.00
In stock
SKU
AB-ADV
Add to Wish List Add to Compare

Overview

Straight compression type fittings incorporating fixed or swivel male threads to provide connection to knockouts and threaded entries.
These fittings are designed for use with all types of unslit Harnessflex conduit, maintaining maximum conduit bore.

About this product

Features

  • IP67 - IP68 (2 bar for 30 minutes) SRN sealing bush protects against ingress of water and dust.
  • Cap-nut retention ring ensures integrity of assembly under extreme vibration
  • Available with metric, PG fixed male, NPT & PF threads.
  • Includes flat seal washer providing a seal between panel / bulkhead and fitting.
  • Polyamide (Nylon) 66
  • Temperature Range: -40ºC to +150ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free

Conformity

  • ADR approved (NC conduits ONLY)
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC

Dimensions

Body SKU Cap Nut Seal Thread Conduit Size A B C D F G
AB12-M16 CN07 SRN07 M16x1.5 10 34 12 23 11 22 17
AB12-M20 CN07 SRN07 M20x1.5 10 37 14 23 15 27 17
AB12-M16 CN09 SRN09 M16x1.5 12 34 12 26 11 22 17
AB12-M20 CN09 SRN09 M20x1.5 12 37 14 26 15 27 17
AB16-M16 CN11 SRN11 M16x1.5 16 35 12 26 11 27 17
AB16-M20 CN11 SRN11 M20x1.5 16 37 14 26 15 27 11
AB20-M20 CN16 SRN16 M20x1.5 20 39 14 31 15 30 20
AB25-M25 CN21 SRN21 M25x1.5 25 43 15 39 19 38 21
AB25-M25 CN28 SRN28 M25x1.5 28 43 15 39 19 38 21
AB32-M32 CN32 SRN29 M32x1.5 32 49 16 46 26 46 27
AB40-M40 CN36 SRN36 M40x1.5 40 59 16 58 31 59 35
AB50-M50 CN48 SRN48 M50x1.5 50 59 16 72 41 73 35
AB12-PG09 CN07 SRN07 PG09 10 32 10 23 10 22 17
AB12-PG11 CN07 SRN07 PG11 10 32 10 23 14 22 17
AB12-PG13 CN07 SRN07 PG13 10 32 10 23 16 22 17
AB12-PG09 CN09 SRN09 PG09 12 32 10 23 10 22 17
AB12-PG11 CN09 SRN09 PG11 12 32 10 23 14 22 17
AB12-PG13 CN09 SRN09 PG13 12 32 10 26 16 27 17
AB16-PG09 CN11 SRN11 PG09 16 32 10 26 10 27 17
AB16-PG11 CN11 SRN11 PG11 16 32 10 26 14 27 17
AB16-PG13 CN11 SRN11 PG13 16 32 10 26 16 27 17
AB20-PG16 CN16 SRN16 PG16 20 35 11 31 18 30 20
AB25-PG21 CN21 SRN21 PG21 25 40 12 39 23 38 21
AB25-PG21 CN28 SRN28 PG21 28 40 12 39 23 38 21
AB32-PG29 CN32 SRN32 PG29 32 45 12 46 31 46 27
AB40-PG36 CN36 SRN36 PG36 40 55 12 58 38 59 35
AB50-PG48 CN48 SRN48 PG48 50 55 12 72 50 73 35
ABS12-M16 CN07 SRN07 M16x1.5 10 44.5 11 23 12 24 17
ABS12-M20 CN07 SRN07 M20x1.5 10 44.5 11 23 12 24 17
ABS12-M16 CN09 SRN09 M16x1.5 12 44.5 11 23 12 24 17
ABS12-M20 CN09 SRN09 M20x1.5 12 44.5 11 23 12 24 17
ABS16-M16 CN11 SRN11 M16x1.5 16 46.5 12 26 12 30 20
ABS16-M20 CN11 SRN11 M20x1.5 16 44.5 11 26 12 30 20
ABS20-M20 CN16 SRN16 M20x1.5 20 47 11 31 16 33 22.5
ABS25-M25 CN21 SRN21 M25x1.5 25 52 12 39 19 42.5 22.5
ABS25-M25 CN28 SRN28 M25x1.5 28 52 12 39 19 42.5 22.5
ABS32-M32 CN32 SRN29 M32x1.5 32 58.5 17 46.5 26.5 51 26

Sealed Fittings: Accessories

We offer supplementary accessories for our sealed fittings to modify conduit fit

Cap Nuts & Seals

Available in standard and reducing varieties.

Swivel Rings

Convert sealed outlets to unsealed freely rotating.

Washers & Lock nuts

To suit our threaded fittings such as Type AB, suitable for mounting to knockouts.

Cap Nuts and Seals

Harnessflex Sealed bodies support a nominal conduit diameter via their default Cap nut and Seal pairing (the largest conduit size in the conduit diameters list).
Reducing cap nut and seals are also available, which support smaller conduit diameters than the nominal standard.

Swivel Rings

Swivel rings provide an option to convert the conduit fit from a sealed non-rotating connection, to a non-sealed freely rotating one. Swivel rings are available for the nominal conduit diameter of a sealed body, via a the standard cap nut (no reducing fittings).

  • Replaces SRN seal to provide a rotating joint.
  • Swivel capability converts sealed fittings into freely rotating IP40 fittings for dynamic applications.
  • Split C ring design sits tightly into conduit corrugations.

Face Sealing Washers / Lock Nuts

High Quality face sealing washers in TPV Material and Lock Nuts made of Nylon to suit standard threaded sealed fittings.

TPV

Resistant to: Water, acids, ethanol, glycerol, methanol and propanol, hydraulic brake fluid and antifreeze.

Polyamide 12 Nylon

Resistant to all under bonnet oils, greases, fuels, cleaning fluids and synthetic fluids.
