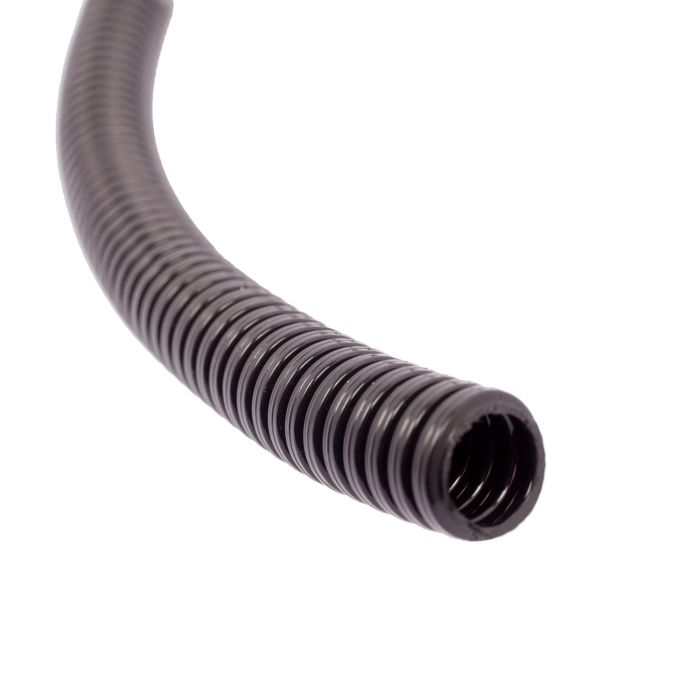

NC Conduit

As low as £38.28
In stock
Only %1 left
SKU
NC

Description

Flexible standard weight nylon (PA6) conduit is a general-purpose conduit suitable for automotive harness applications. Able to withstand extremes of temperatures and resistant to automotive oils and solvents. It is extremely tough and has a very high impact strength and high fatigue life.

Applications

NC standard weight conduit is extensively used in harnesses on HGV and off road vehicle applications where a superior protection against impact and mechanical shock is preferred. The conduit is used for both chassis and engine applications and can be used in a wide range of temperatures. Polyamide 6 is highly resistant to all hydrocarbon based oils and fluids and many types of solvents.

Core Specifications


Approvals

ADR Approved (Sealed Fittings)

CE Mark to the Low Voltage Directive

RoHS Compliant to 2011/65/EU

Conforms with End of Life Vehicle directive
(ELV) EU200/53/EC

Available Colours

Black - RAL 9005

Orange - RAL 2003

IP Ratings

IP40:
Slit conduit and/or Hinged fittings

IP67 / IP68 (2 bar 30 mins):
Solid conduit and Sealed fittings

Mechanical Protection

High flexibility and fatigue life

Very high abrasion, impact and shock resistance

Suited to high risk impact applications

UV Resistance

Very High (Black)

Temperature Range

Long term: -40°C to +120°C

Short term: +150°C

Fire Performance

Self extinguishing

Low smoke toxicity

Halogen free

UL94HB rated

UNECE R118 Annex 7 and 8

Solid Part No. Slit Part No. Size (NC) Size (NW) Size (US) Nominal OD (mm) Min. bore (mm) Min. static bend radius (mm) Standard reel length
NC06 NC06-S 06 4.5 3/16 7.1 4.5  5.0 100
NC08 NC08-S 08 7.5 1/4 10.0 6.5 15.0 100
NC10 NC10-S 10 8.5 5/16 11.5 8.4 15.0 100
NC12 NC12-S 12 10 5/16 13.0 9.9 20.0 100
NC16 NC16-S 16 13 3/8 16.0 11.8 30.0 100
NC20 NC20-S 20 17 1/2 21.2 16.6 35.0 50
NC25 NC25-S 25 22 3/4 25.6 21.3 40.0 50
NC28 NC28-S 28 23 3/4 28.5 22.6 45.0 50
NC30 NC30-S 30 26 1 31.6 26.0 50.0 50
NC32 NC32-S 32 29 1 34.5 28.8 55.0 50
NC40 NC40-S 40 36 1 1/4 42.5 34.8 65.0 25
NC50 NC50-S 50 48 1 1/4 54.5 46.9 70.0 25
