GPA Conduit

As low as £36.84
In stock
Only %1 left
SKU
GPA

Description

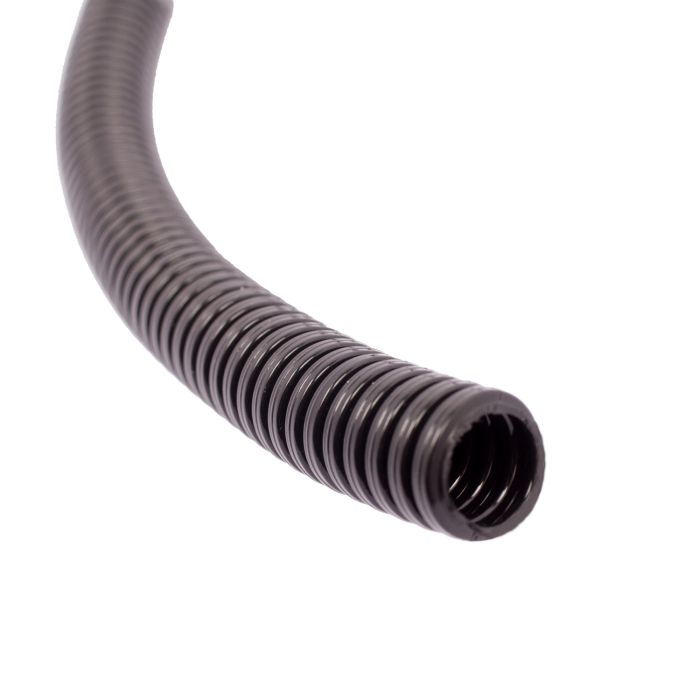

Flexible medium weight, polyamide 6 / polypropylene material blend conduit, suitable for automotive harness applications. Ideal for vehicle cable routing and protection and general purpose applications. Able to withstand average temperatures and resistant to hydrocarbons, greases, fuels and oils. It is extremely tough and has a high chemical resistance and medium fatigue life.

Applications

GPA is particularly used in lighter applications where compression strength and LFH is not so important. The main property of this conduit is chemical resistance. GPA is designed for connection to all Harnessflex Sealed and Hinged system fittings.

Core Specifications


Approvals

CE Mark to the Low Voltage Directive

RoHS Compliant to 2011/65/EU

Conforms with End of Life Vehicle directive
(ELV) EU200/53/EC

Available Colours

Black - RAL 9005

IP Ratings

IP40:
Slit conduit and/or Hinged fittings

Mechanical Protection

Medium flexibility and fatigue life

Medium abrasion, impact and shock resistance

UV Resistance

High

Temperature Range

Long term: -5°C to +90°C

Short term: +105°C

Fire Performance

Self extinguishing

Halogen free

UL94HB rated

Solid Part No. Size (NC) Size (NW) Size (US) Nominal OD (mm) Min. bore (mm) Min. static bend radius (mm) Standard reel length
GPA08 08 7.5 1/4 10.0 6.6 20.0 100
GPA10 10 8.5 5/16 11.6 8.2 25.0 100
GPA12 12 10 5/16 13.1 10.0 25.0 100
GPA16 16 13 3/8 16.0 11.7 35.0 100
GPA20 20 17 1/2 21.2 16.6 45.0 50
GPA25 25 22 3/4 25.6 20.6 55.0 50
GPA28 28 23 3/4 28.4 22.8 60.0 50
GPA30 30 26 1 31.6 25.8 65.0 50
GPA32 32 29 1 34.5 28.6 80.0 50
GPA40 40 36 1 1/4 42.4 35.0 100.0 25
GPA50 50 48 1 1/4 54.3 45.6 120.0 25
